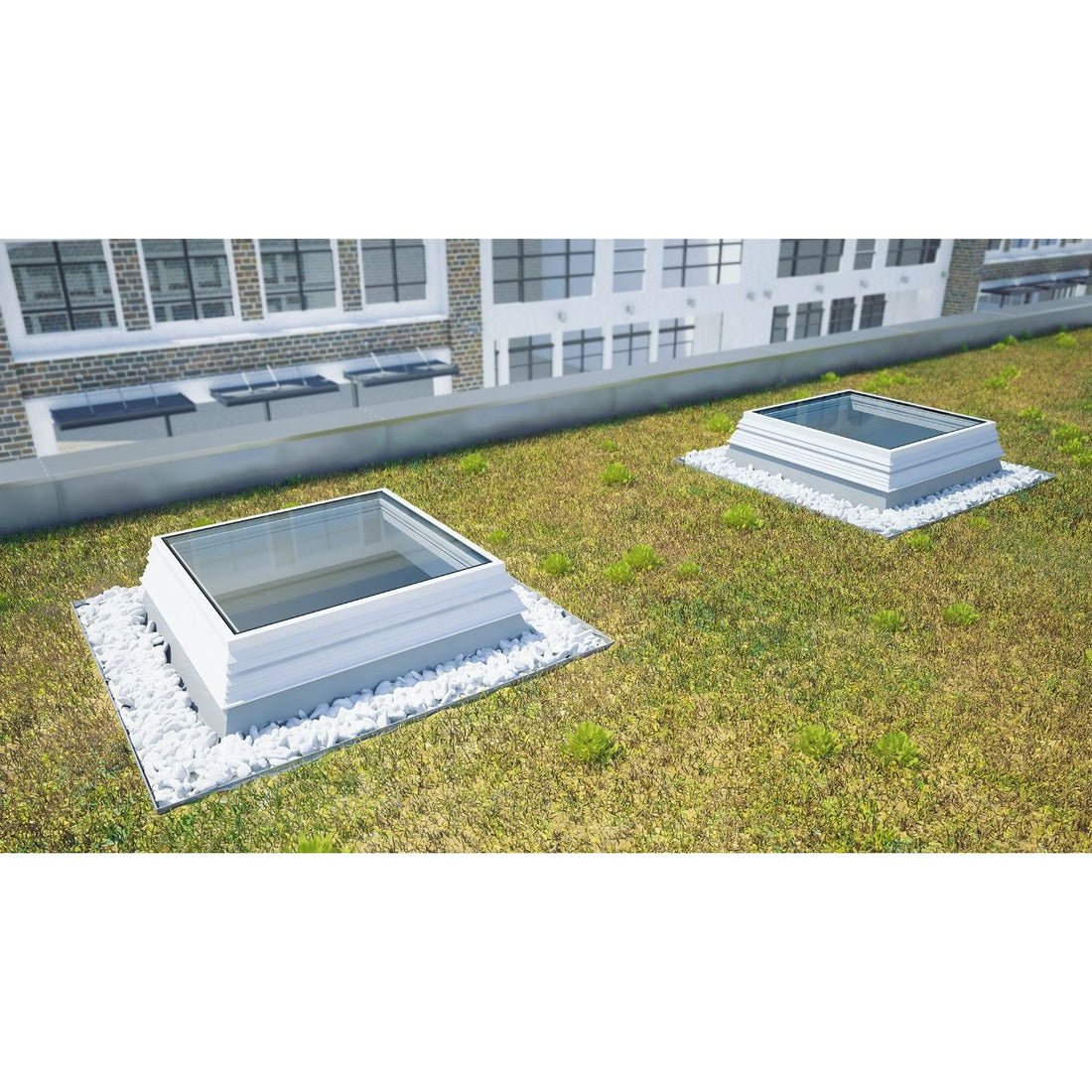

FDF neo

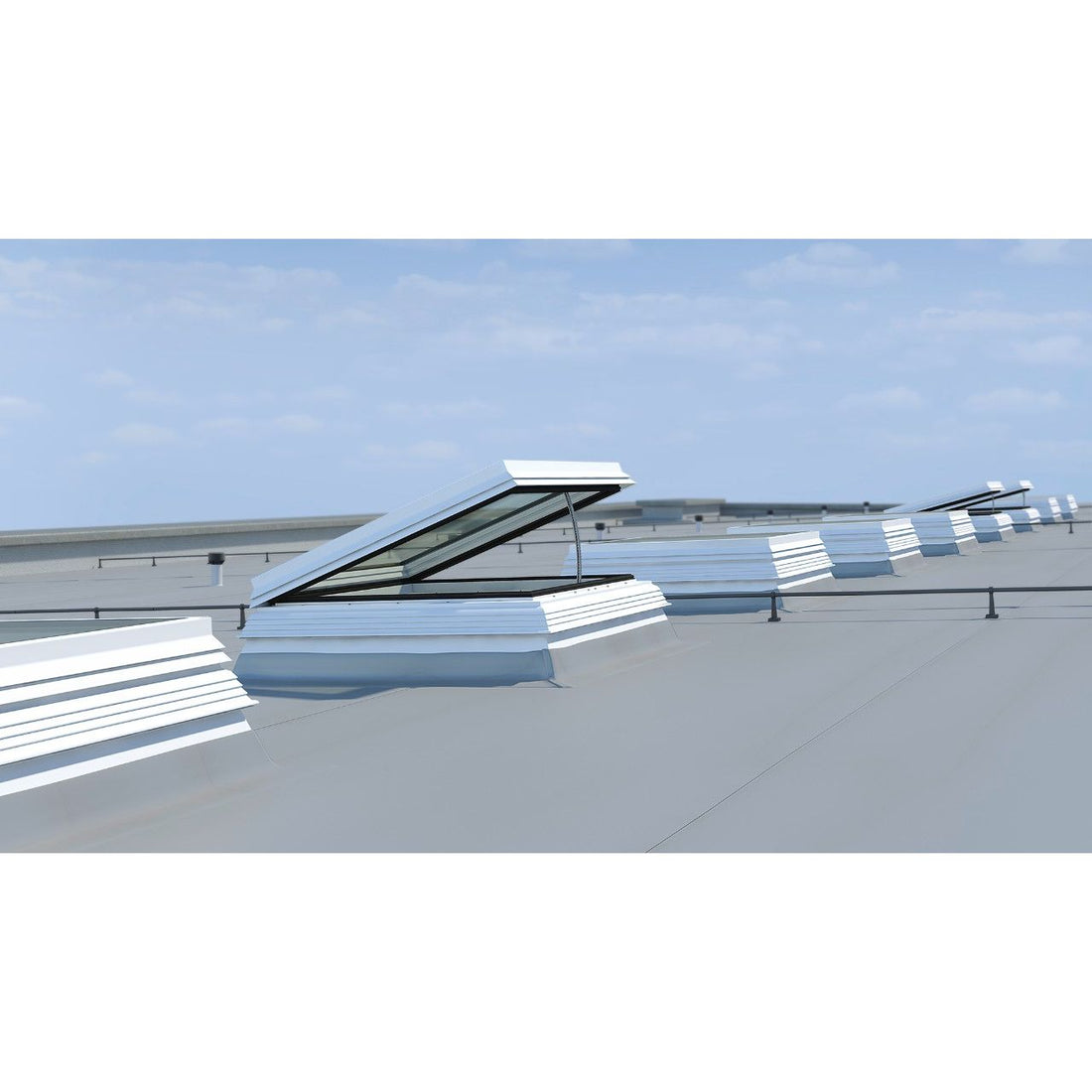

The skylight system FDF neo with real glass can be used either as a rigid or as a ventilated version with a linear or chain drive. It is ideally suited for daily ventilation or as smoke ventilation, e.g. for stairwells. Optionally, the skylight can be opened and closed conveniently by remote control. In addition, a wide range of solutions is available for both new buildings and energy-optimising refurbishments by combining it with the extensive Kingspan ESSMANN system components, such as roof exit hatches or glare protection.

Application areas

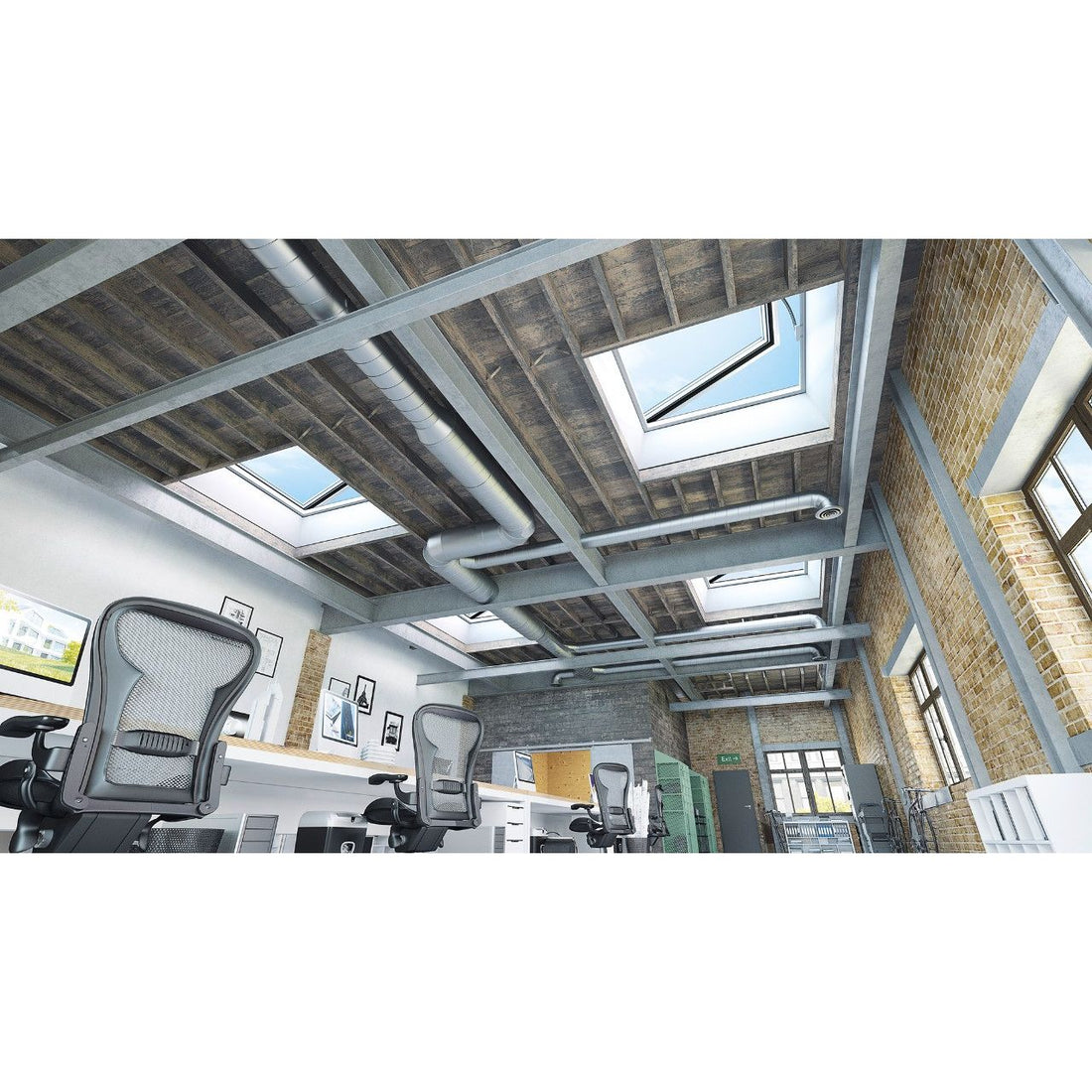

• Office and administrative buildings, schools, kindergartens, atriums, residential buildings with flat roofs up to a roof slope of 0 to max. 25°, recommended from a slope of 5°
• New buildings, energy-optimised refurbishment and repair

Material

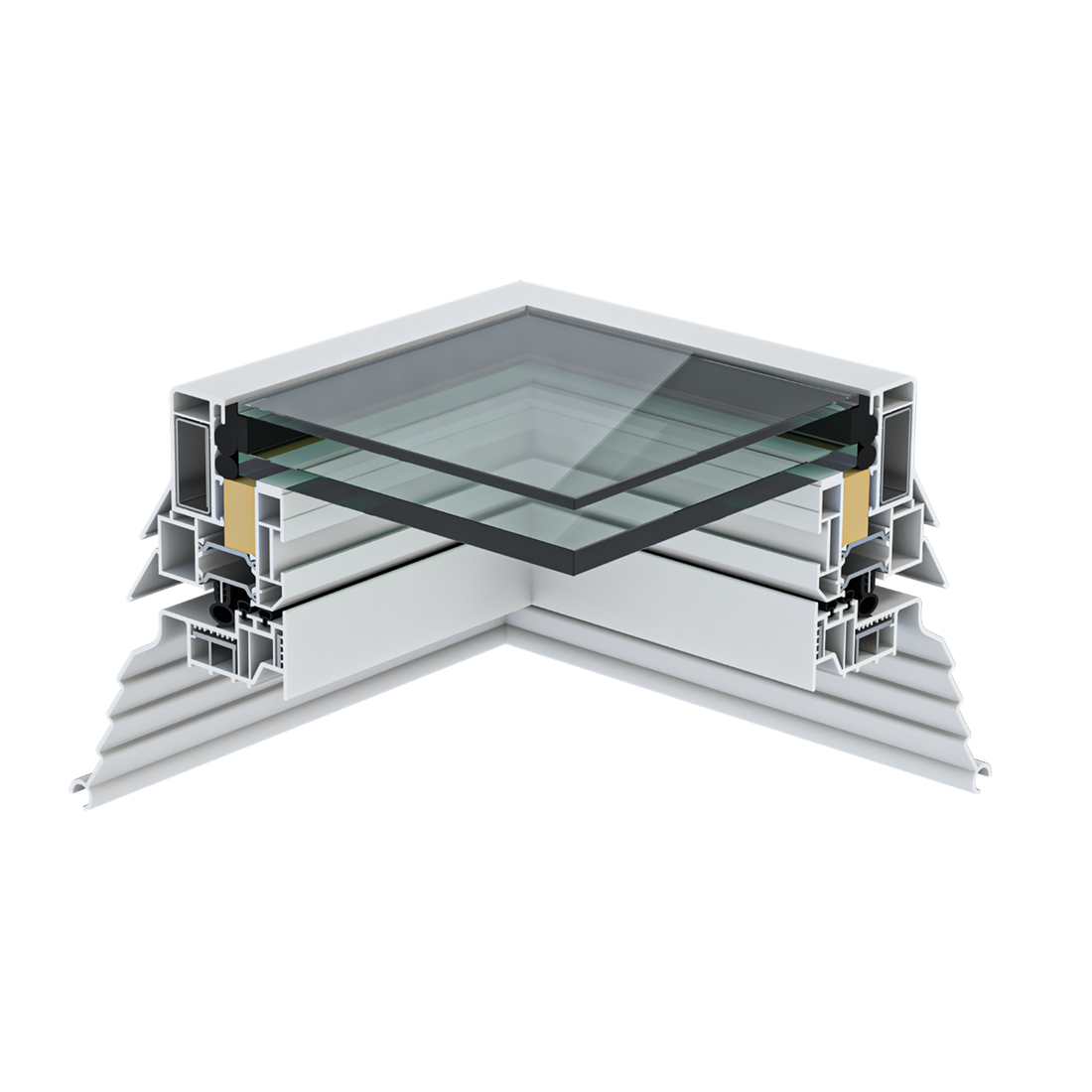

• Thermally separated PVC-profile
• thermal insulation glazing
• EPDM seals

Advantages and features

• Reduction of CO₂ emissions through highly efficient overall design
  • Low U-values 1.1 W/(m²K) / 0.6 W/(m²K)*
  • Kink-free isothermal curve due to thermal bridge-free overall construction
  • Reduction in energy consumption due to high light transmission
  • Multiple sealing system made of EPDM hollow chamber seals
  • Air permeability according to DIN EN 12207: Class 4
• Fall-through protection according to DIN 18008-6 at stroke length of 300 mm
• Flush glass edging with integrated weather joint for unimpeded water drainage
• Increased airborne sound insulation up to 44 dB
• Can be combined with fall and fall-through protection systems
• Can be extended with various functions and accessories:
  • Electric smoke and heat exhaust ventilators NRWG 24/48 V FDF
  • Ventilation function: Linear or chain drives in 24 V, 230 V
  • Roof hatches: EDA G (manual) or EDA M (electric)
  • External shutter
  • Internal glare protection
  • Easy mounting thanks to the system frame SysRa
• Quick and easy refurbishment of third-party products using various refurbishment extension systems

* Manufacturer's specification on glazing
