LK classic
€337,61
Trade pricing — request quote →
⚡
Fast, free delivery
Benelux
✓
2 year warranty
Kingspan certified
⌾
Trade accounts
Volume pricing
⇄
Technical support
Specification help

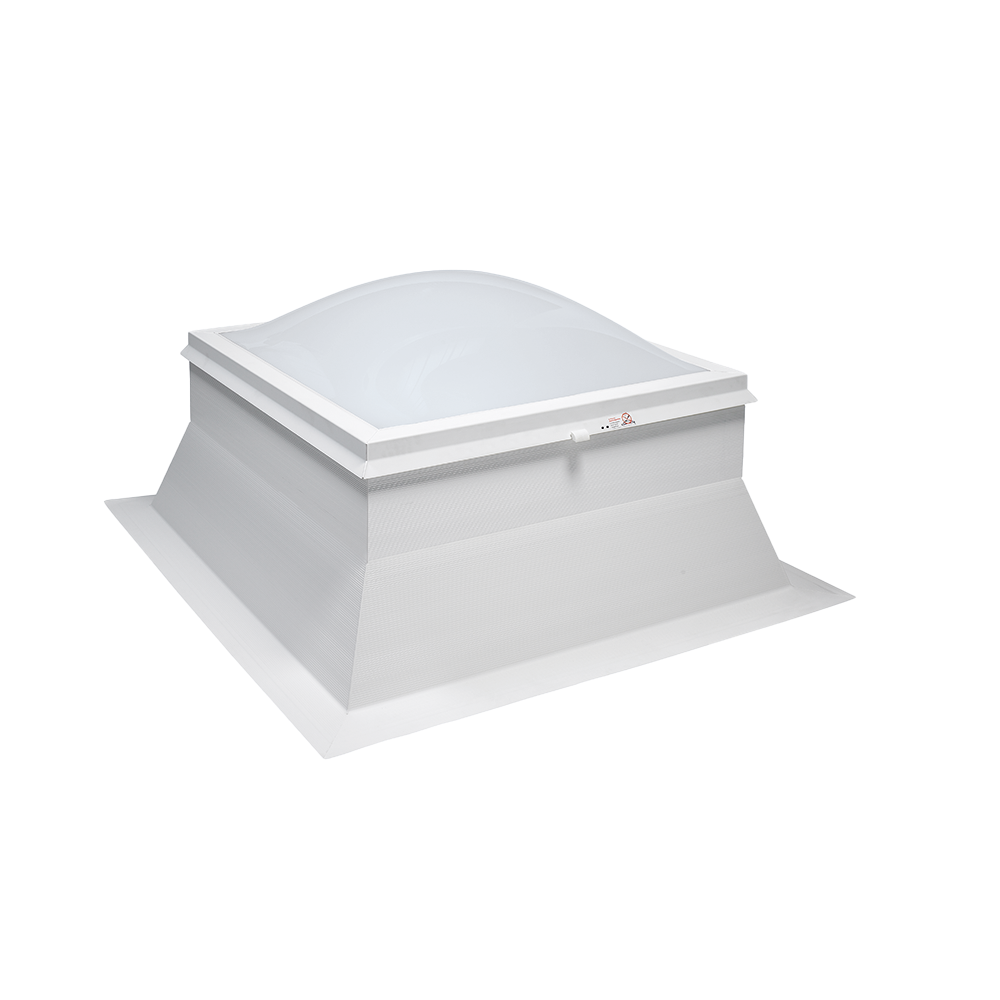

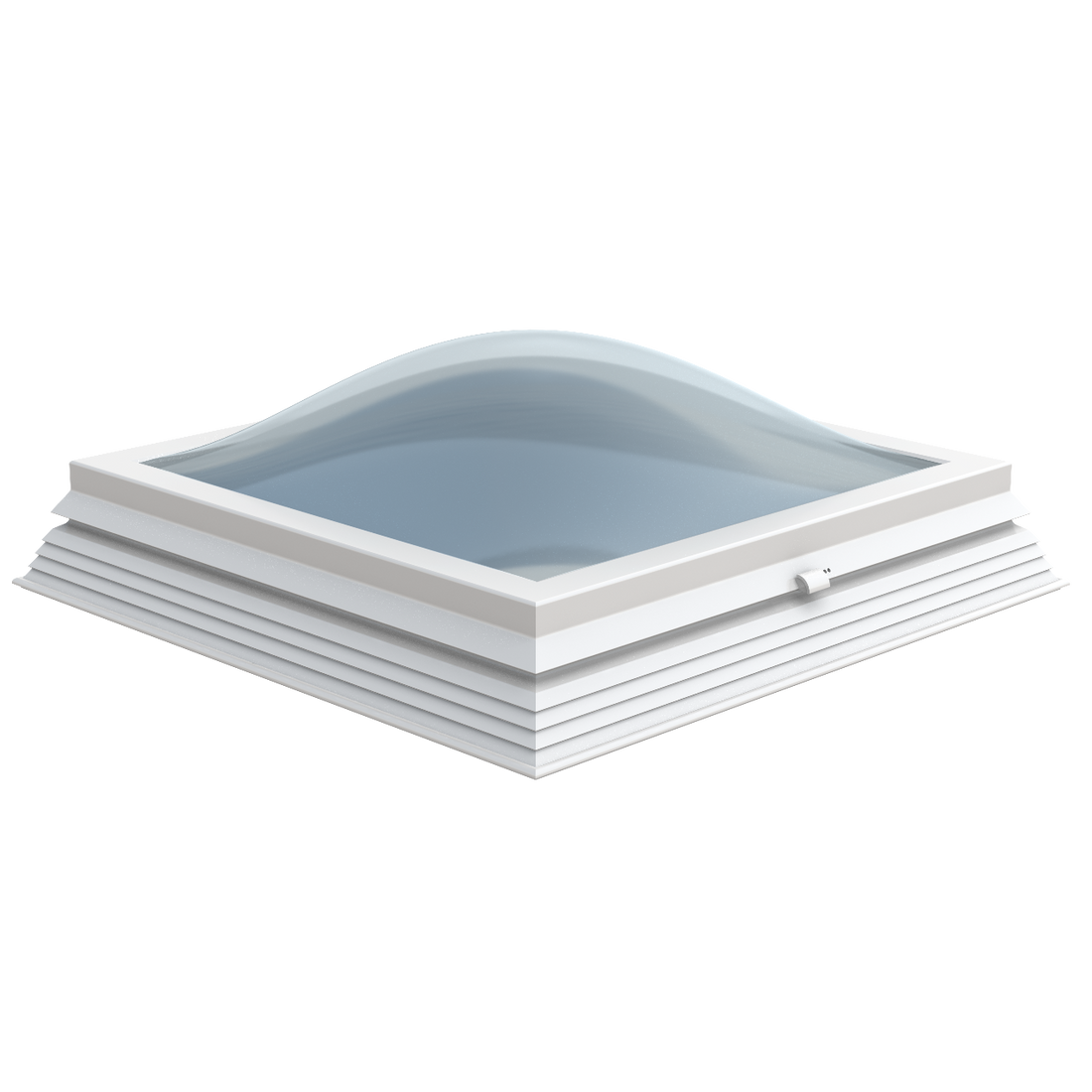

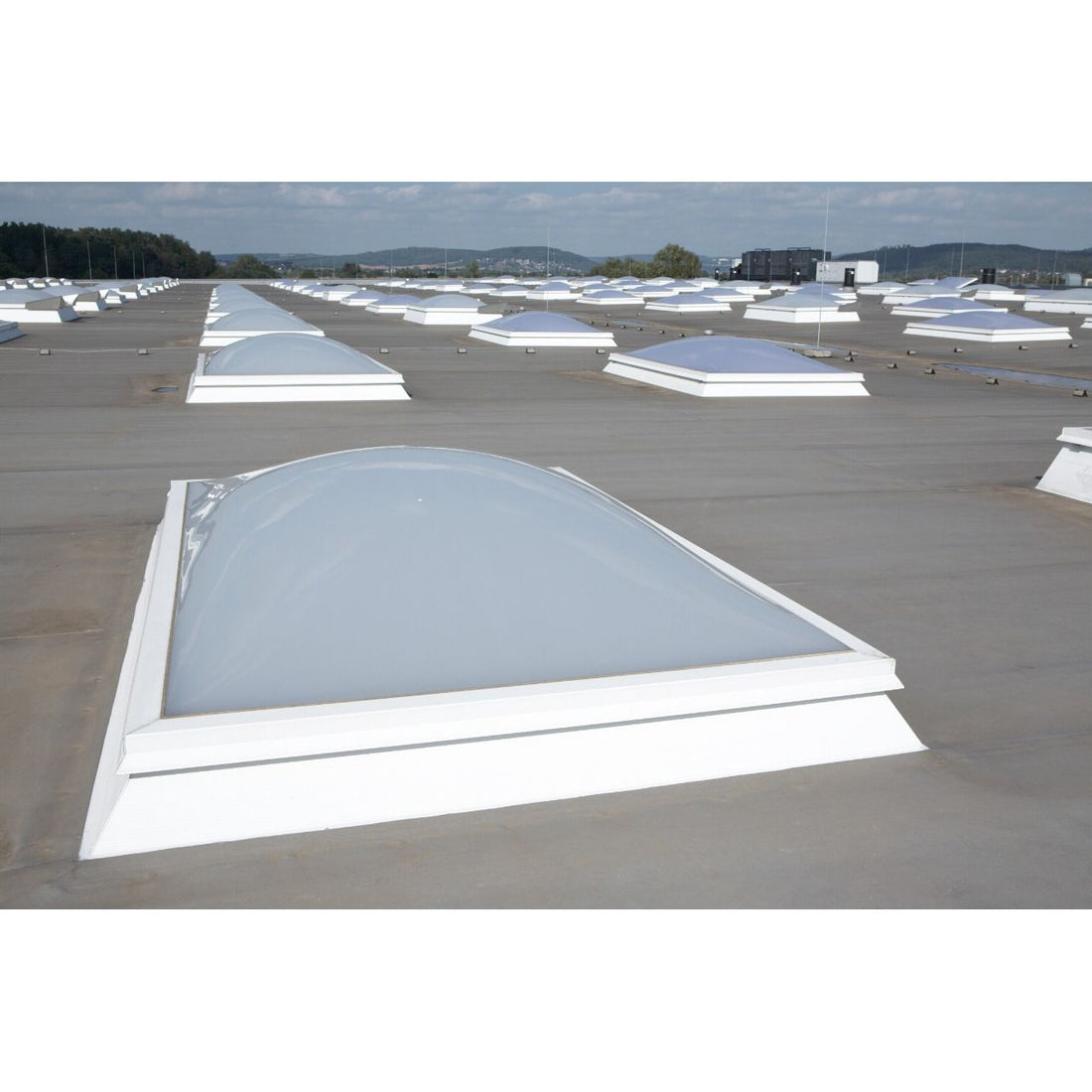

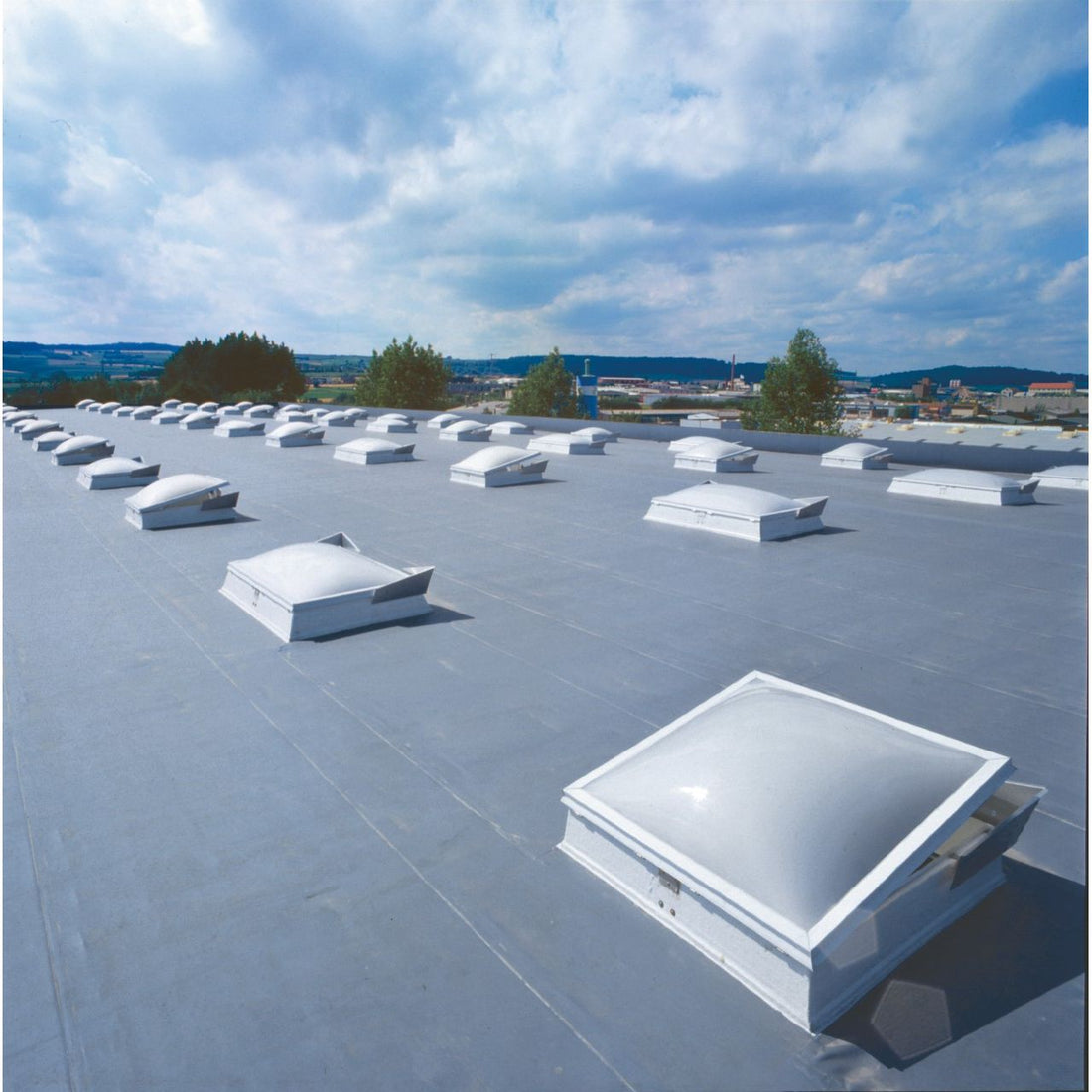

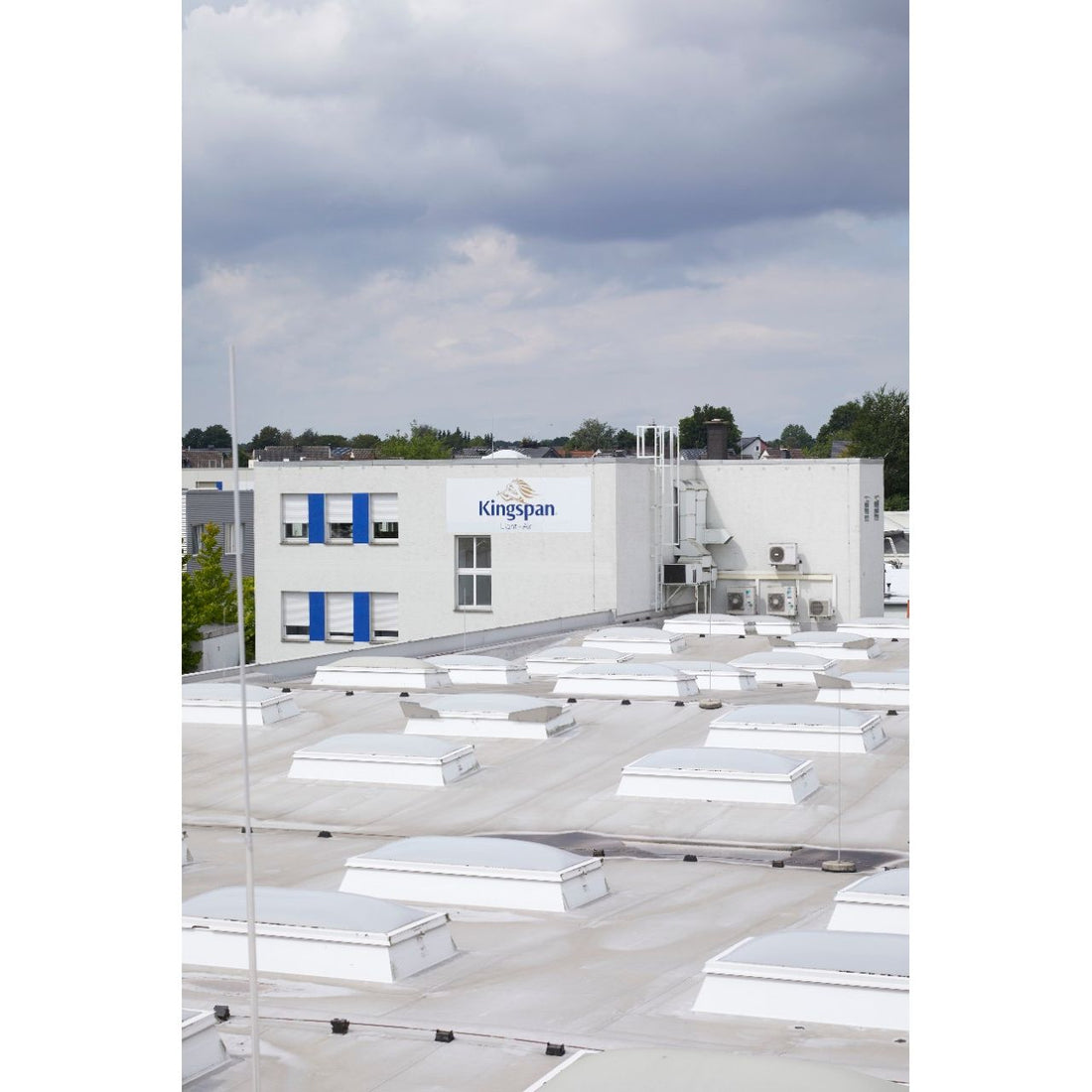

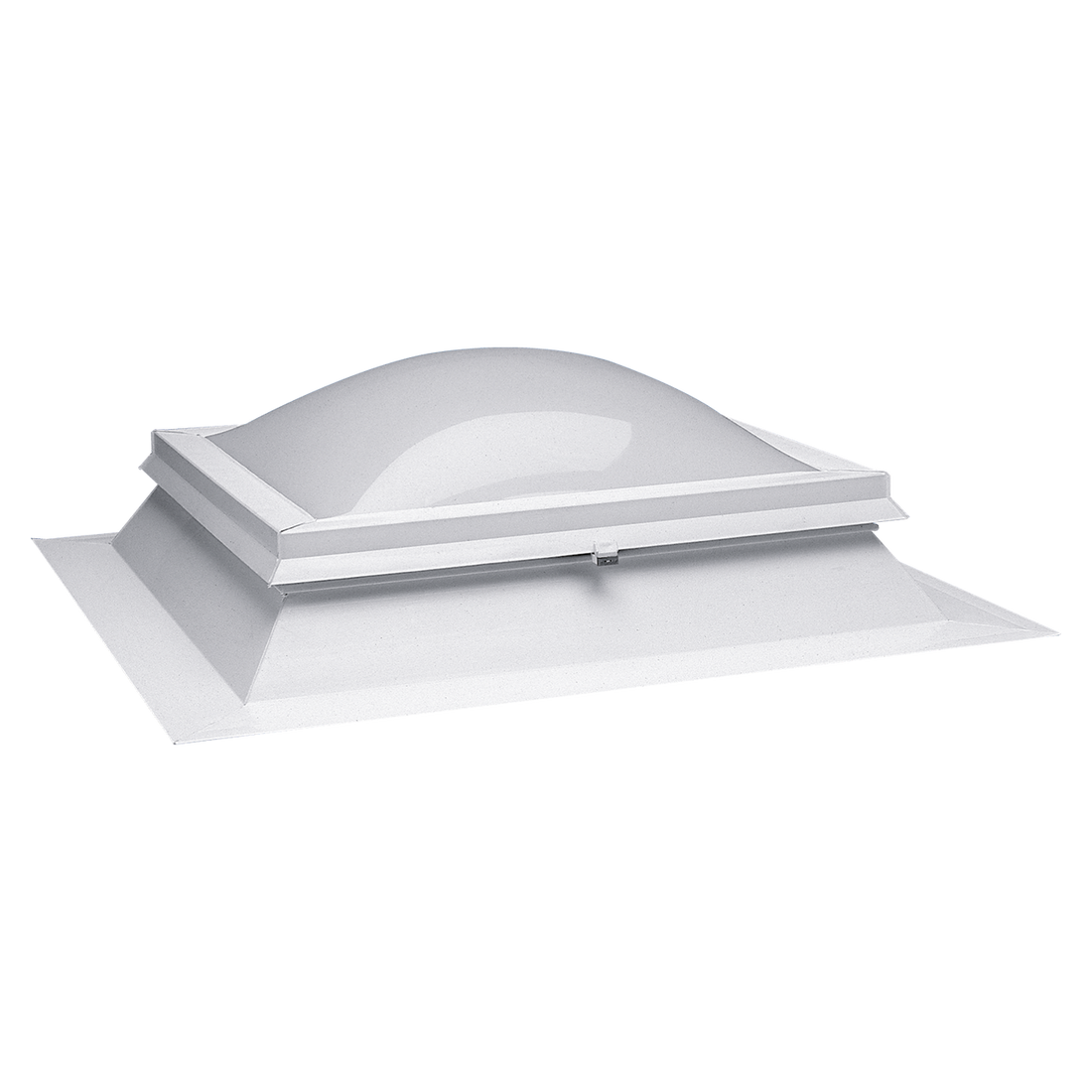

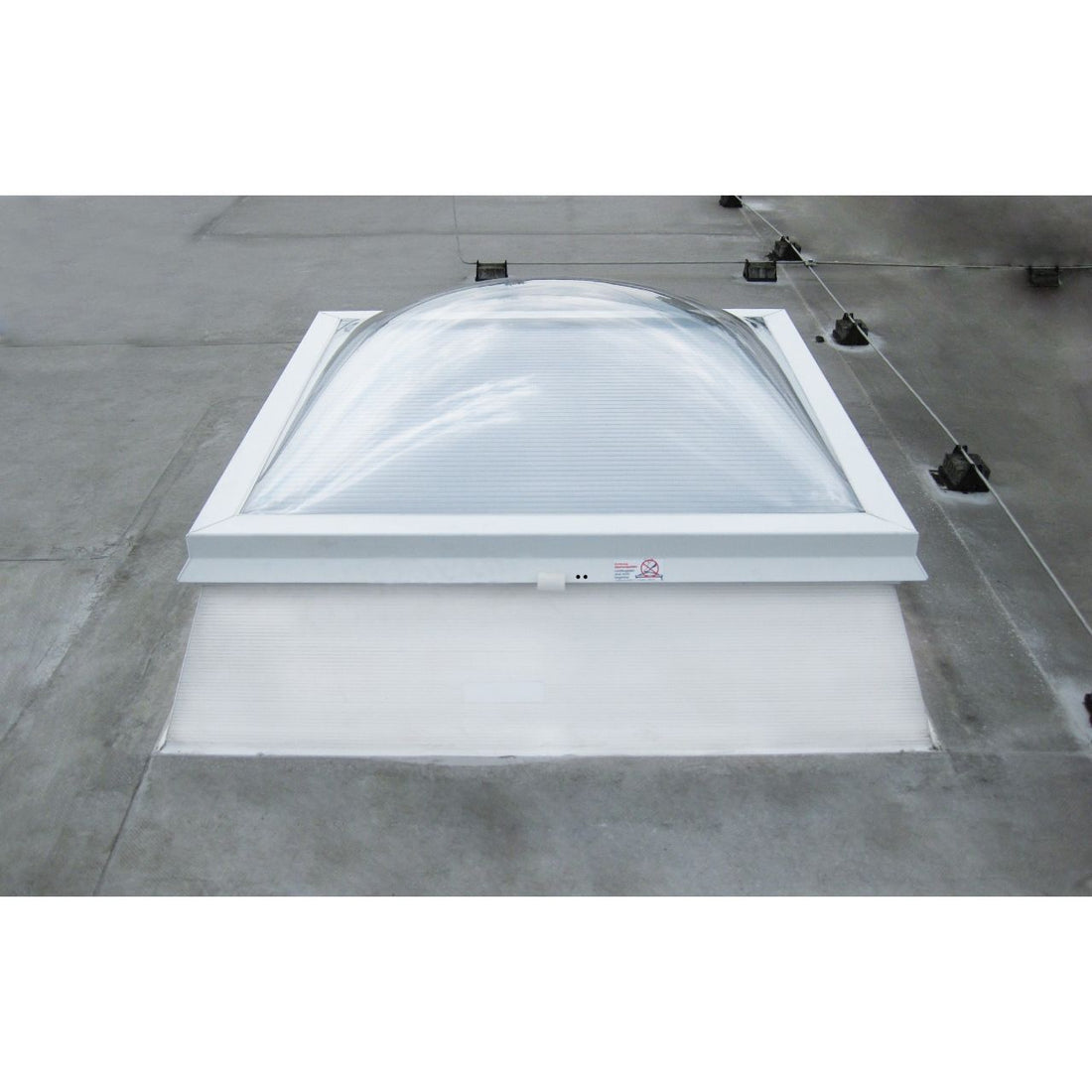

The skylight dome LK classic is a product for the classic requirements on flat roofs. It is available in different glazing variants and can be functionally extended by various components, such as smoke and heat extraction devices, ventilation drives, or fall-through protection systems.
Application areas
- All Kingspan skylight upstands

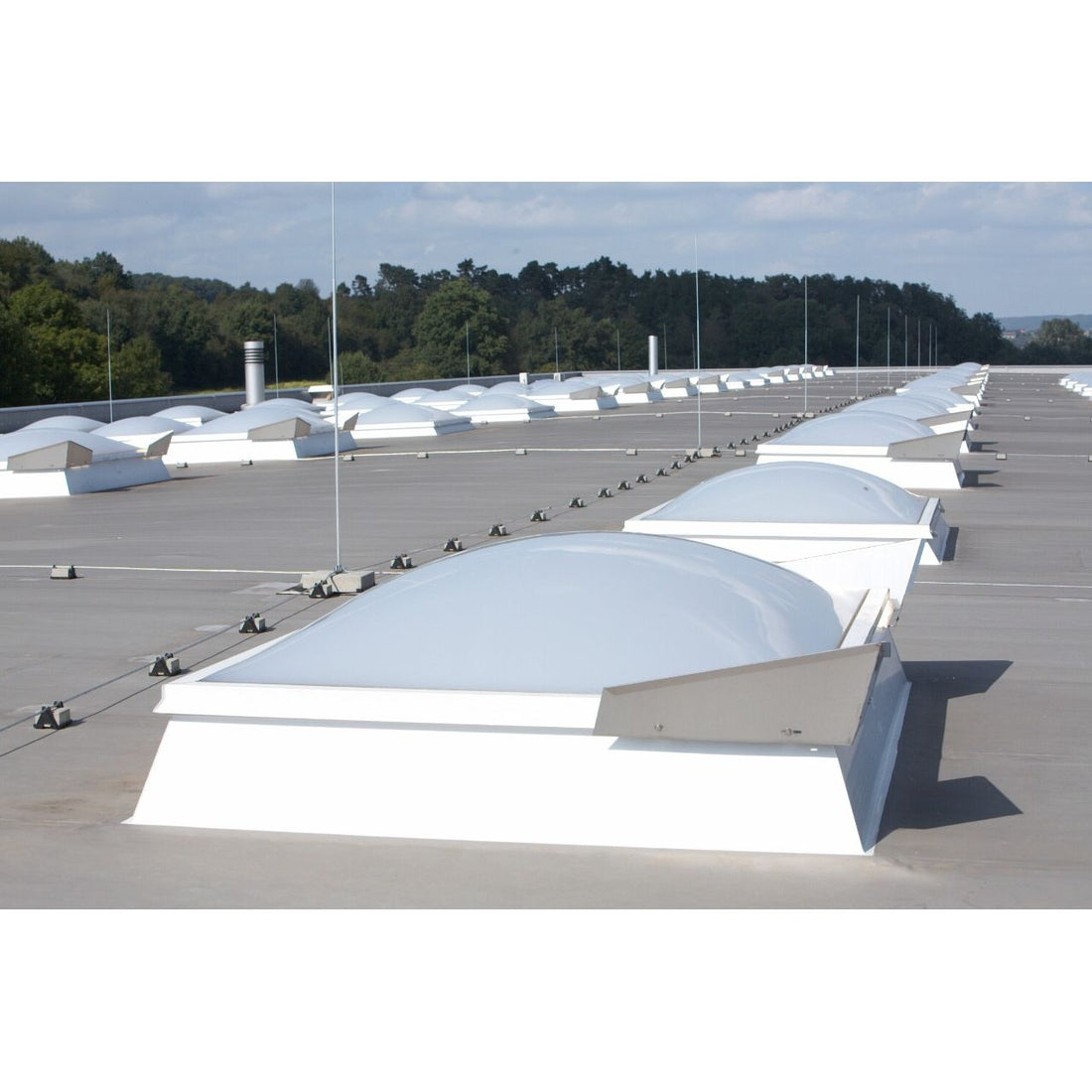

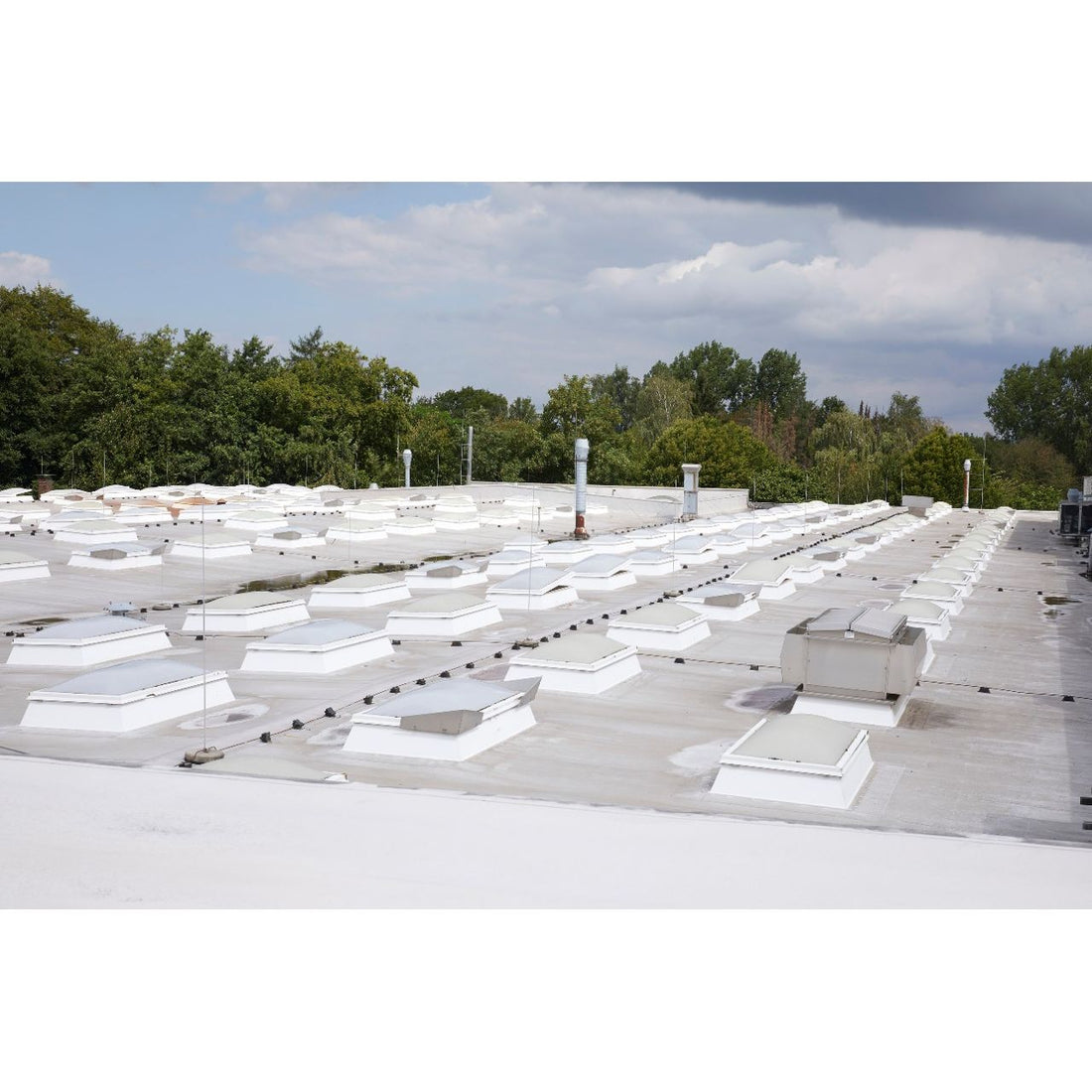

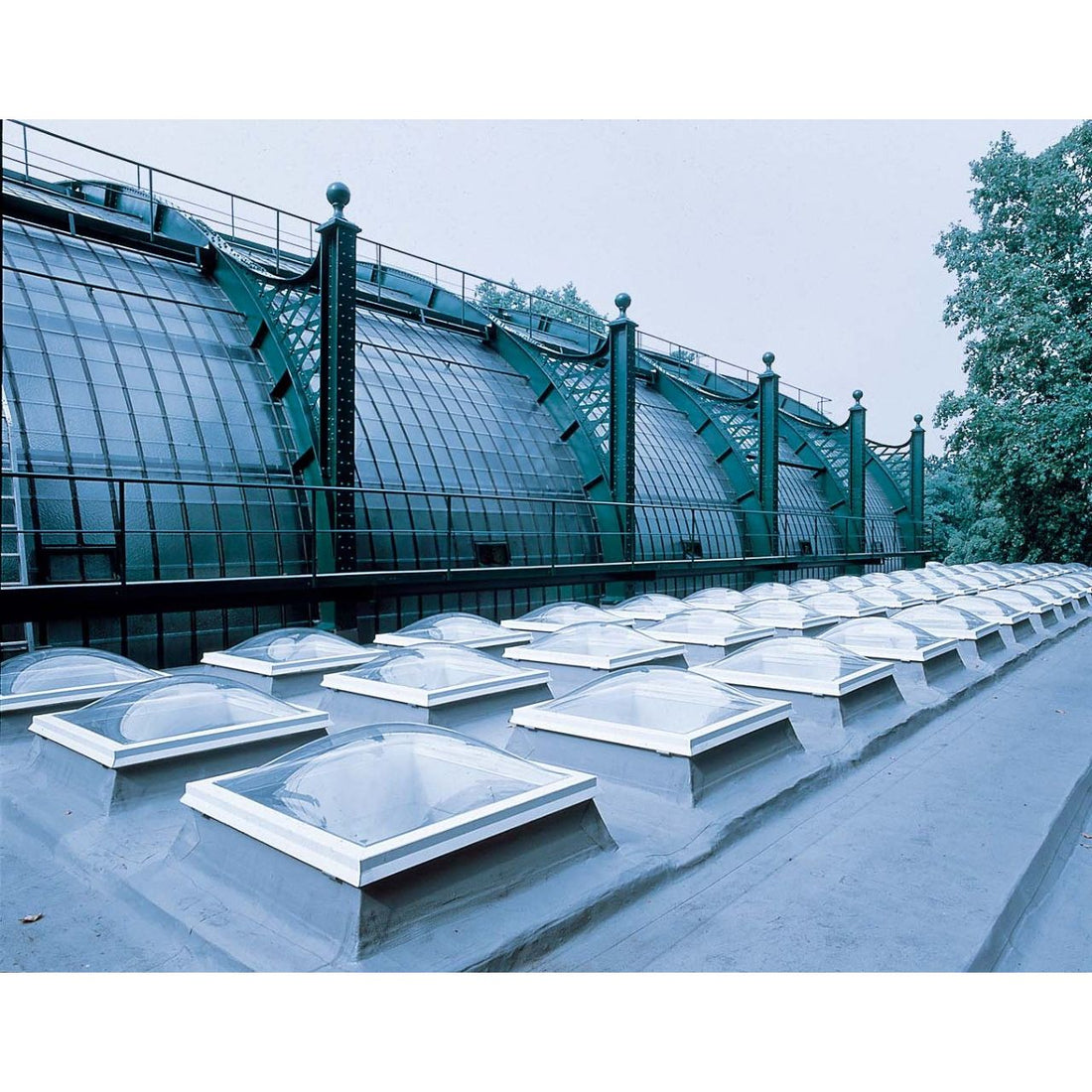

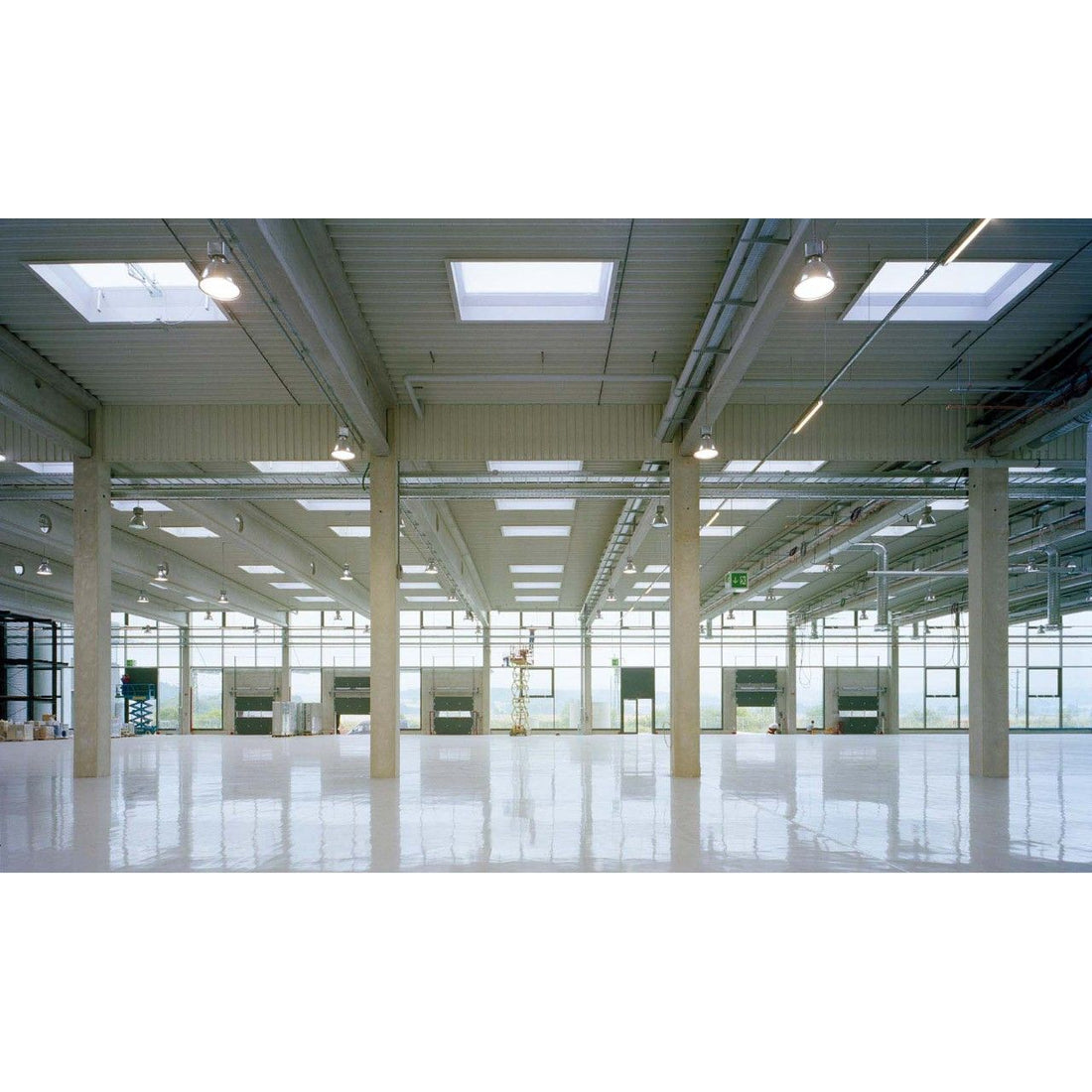

- Industrial flat roofs with a roof slope up to 25° maximum
- New buildings, renovation and refurbishment
- In combination with the weathering frame SR and extension upstands EasyFix, FlexFix and ASM the LK classic can be mounted on third-party upstands
Material
- High-quality plastic glazing
- PVC profile
Advantages and Features
- Available in various glazing variants

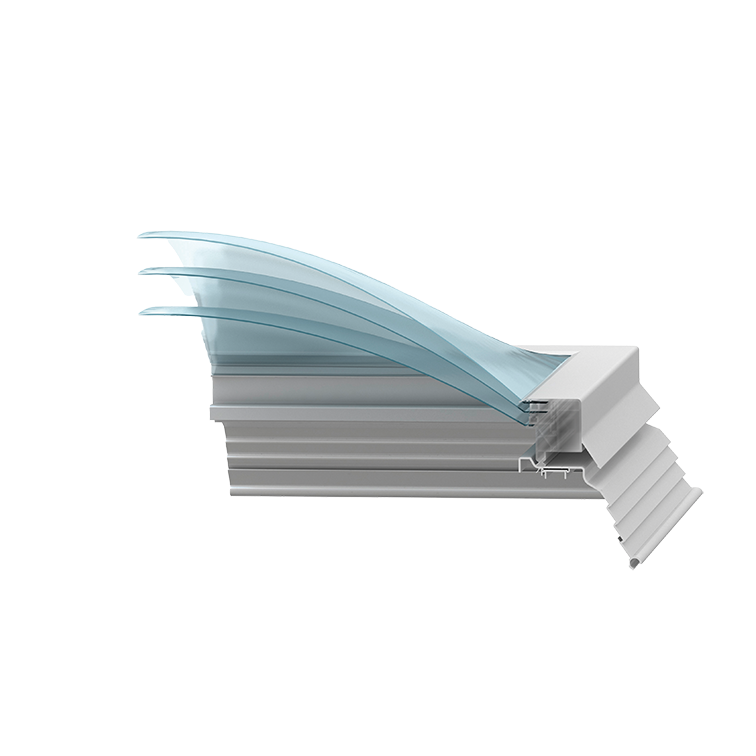

- Two or three shells
- PC-st with polycarbonate multi-wall sheet PC 16/7 and one or two shells
- Robust clamping frame with moulded rain edge as weather protection
- Functionally expandable through a wide range of accessories
- Fall-through protection systems
- Natural smoke and heat exhaust devices (NSHEV)

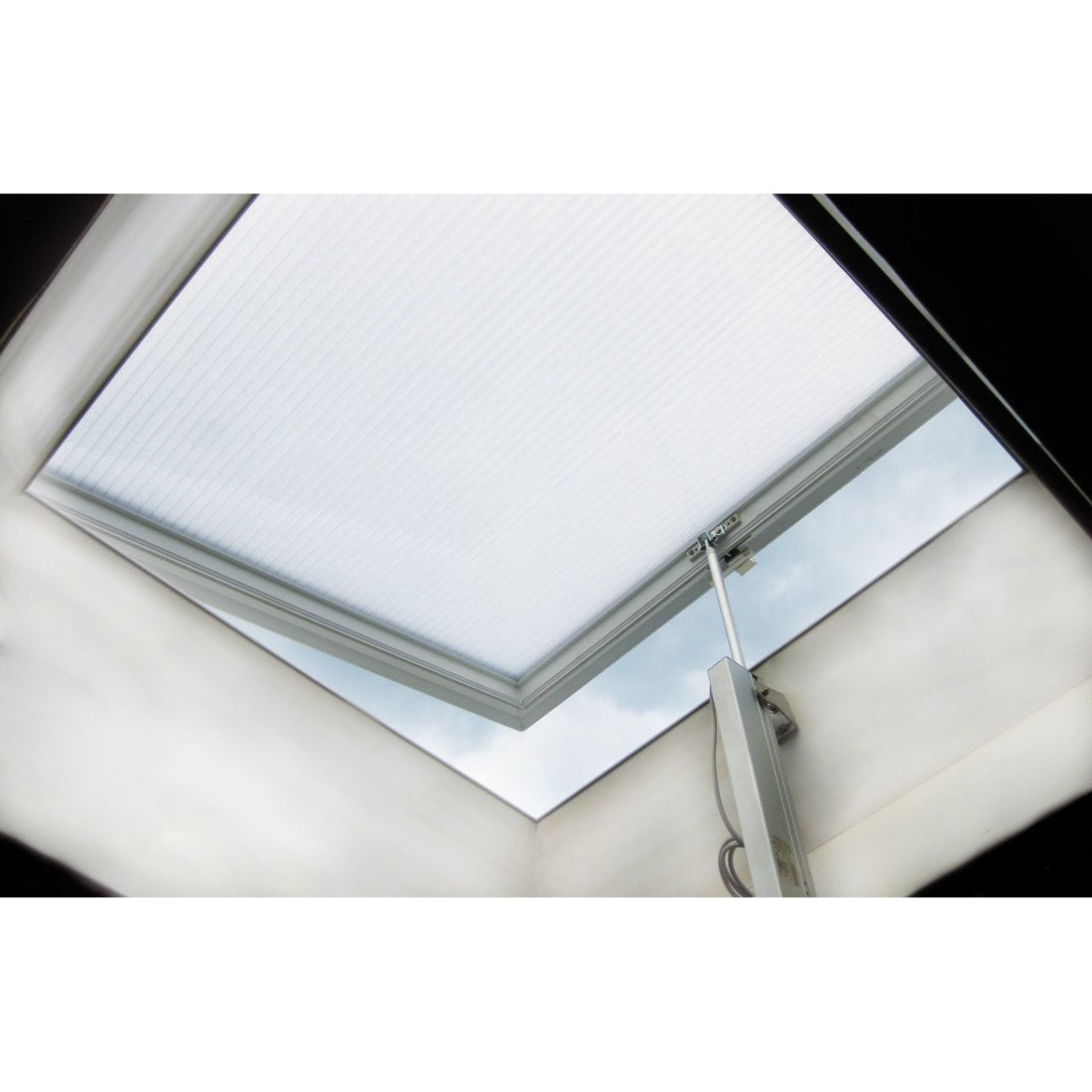

- Actuators for daily ventilation
- Actuators for roof hatches

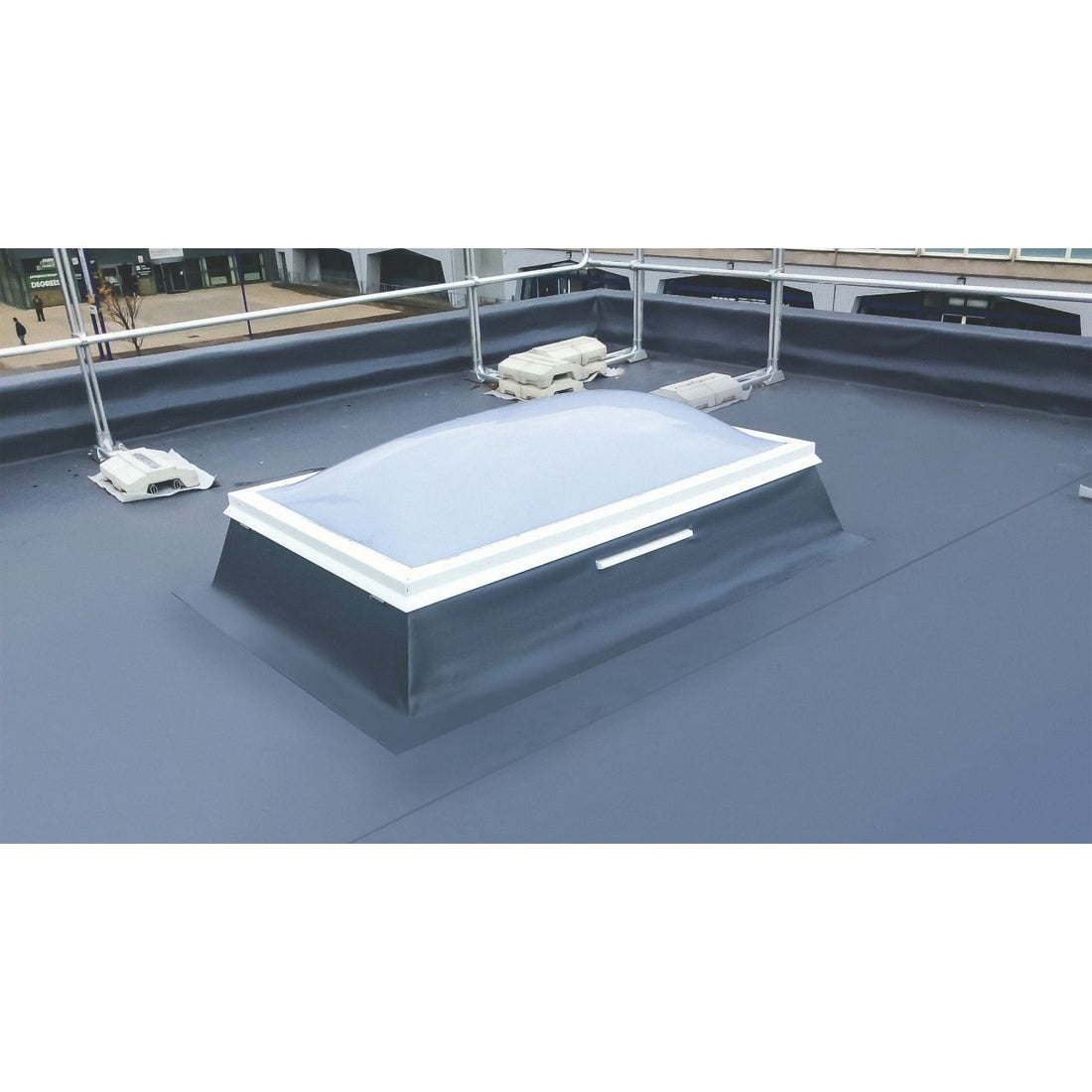

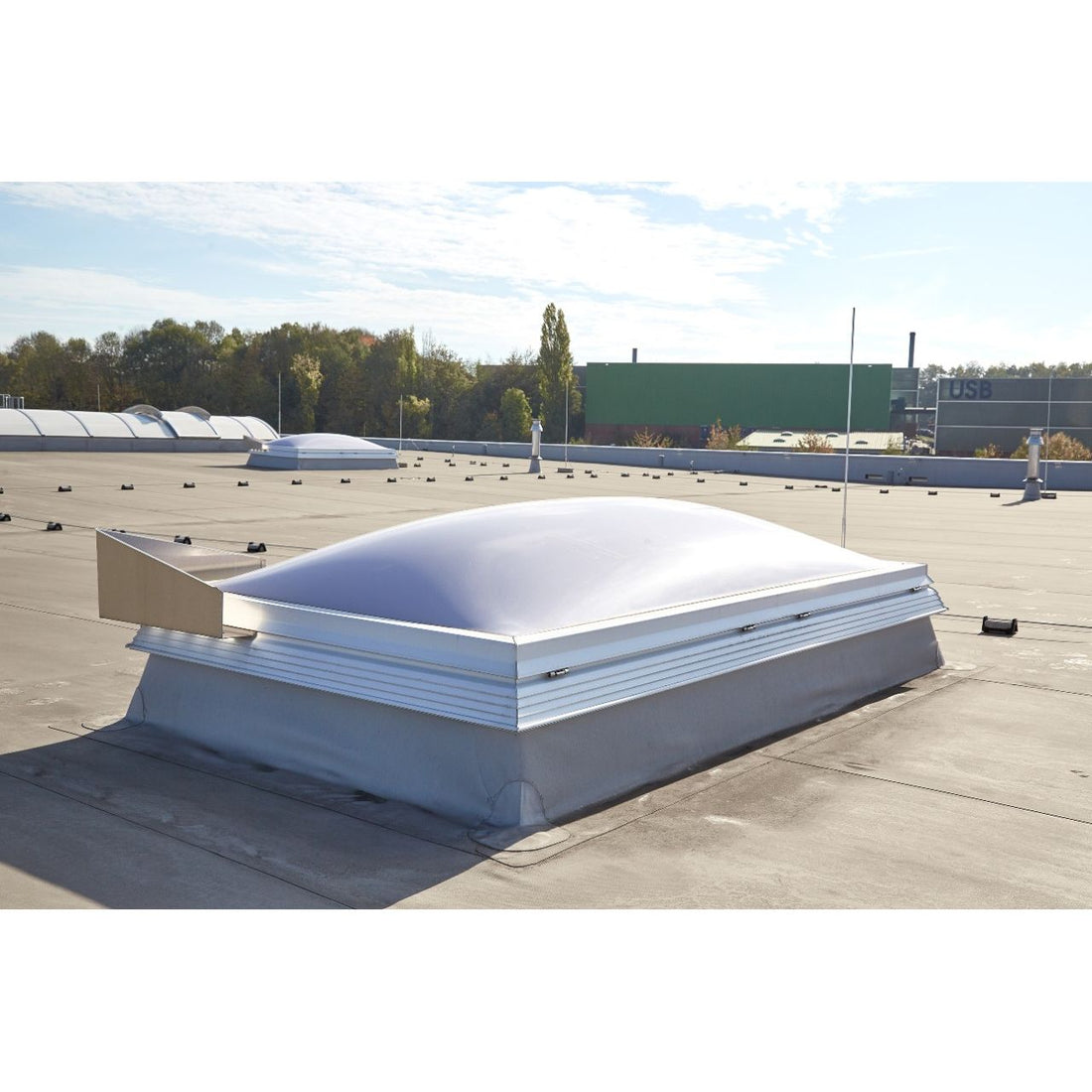

- Weathering frame SR for optimal connection to the roof membrane, high protection against weather impact and easy and quick protection of the membrane edge
DIMENSIONS
Nominal sizes (launch)100×100 · 120×120 · 120×240 · 150×150 cm
Max. roof slope25°
Glazing builds2-shell · 3-shell · PC-st 16/7 + 1 or 2 shells
Upstand compatibilityAll Kingspan ESSMANN upstands
MATERIAL
GlazingHigh-quality plastic glazing (opal standard)
FramePVC enclosure frame with formed rain edge
Weathering frame SROptional, for roof-membrane tie-in
Reaction to fireClass E (EN 13501-1)
PERFORMANCE
Ut value3.0 W/(m²K)
LT (light transmission)61 %
g (total energy transmission)65 %
Rw,p22 dB
